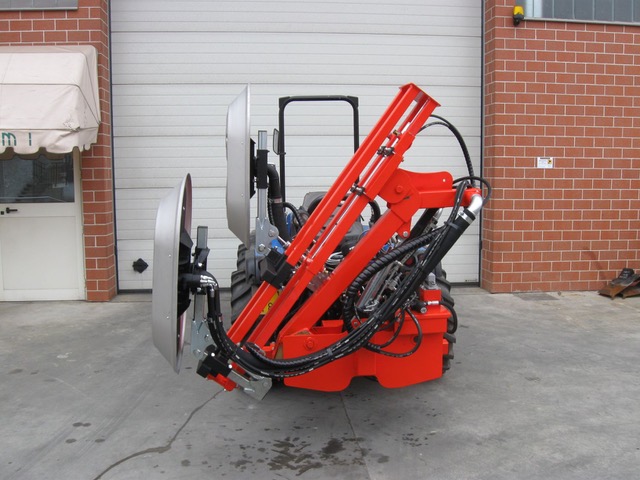

Pneumatic Leaf Remover with Two Heads
2 Independently adjustable heads w/rotating air delivery nozzles
5 Electiric / hydraulic adjustments: frame up & down, frame angled 30 degrees left or right, frame in & out towards fruit, each head individually adjustable
Joystick control
3-Point mounted air compressor
Can be mounted directly to front tractor frame or using tractor front 3-point hitch
| OLMI |
OLMI 509F 509F |
| Air System | |
| Working Speed | 1-1.25 mph |
| Working Pressure | Adjustable from 7 - 13 PSI |
| Hydraulic System | |
| Hydraulic Functions / Frame | Frame: Up & Down, Tilt Left & Right, In & Out from Tree Row |
| Hydraulic Functions / Heads | Each Head is adjustable through 30º |
| Joystick Controller | Electric / Hydraulic control for 5 Functions |
| Oil Cooler | Included in Price |
| Machine Mounting | |
| Front 3-Point Hitch | Included in Price |
| Dimensions and Weights | |
| Weight | 1243 lb |
| Model / Options | Description | Price | Total |
|---|---|---|---|
| OLMI 509F | Pneumatic Leaf Remover with Two Heads on same side, Designed especially for V-Trellis systems, New Air Compressor runs on 540 RPM PTO, (Adjustable Head Kit, Front 3 Pt and Oil Cooler) Included Standard Options | $42,827 | $42,827 |
| Ergonomic Joystick, 5 functions -- 6 buttons | $1,260 | $0 | |
| Subtotal Carraro List Price | $42,827 | ||
| Less 20% Dealer Discount | ($8,565) | ||
| Tractor Total | $34,262 | ||
| $0 | |||
| $0 | |||
| Dealer Cost | $34,261.60 | ||
| $0 | |||
| Customer Total Selling Price | $34,261.60 | ||
|
|
|||
|
